Dual 500 °C nozzles
Hot-swappable hotends, high-temperature stepper motors and a linear-rail nozzle lift for dual-material prints.
Hardware · 3D Labs HTX

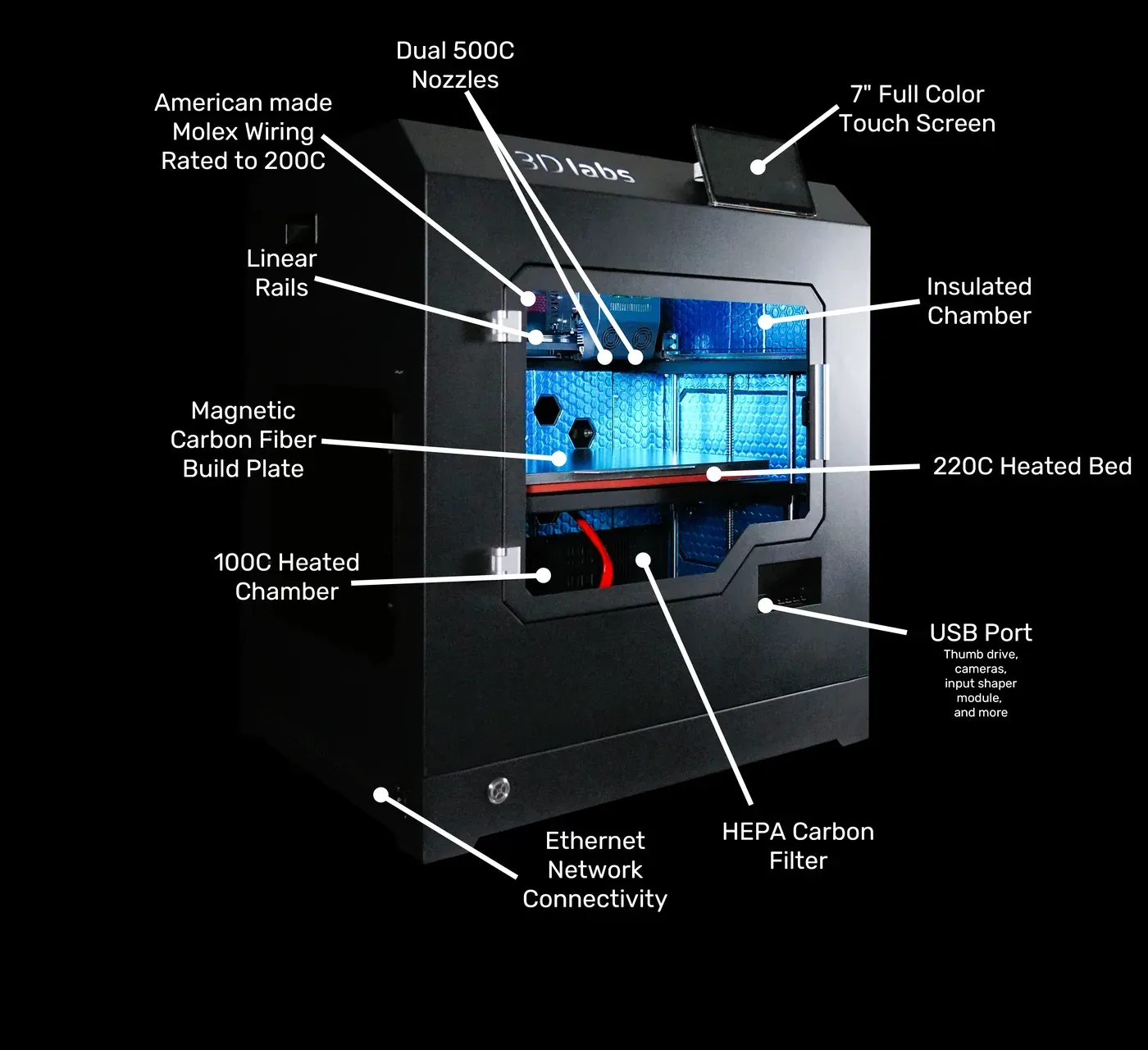

HTX high-temperature 3D printer.
Developed, assembled and shipped from the USA for PEEK, PEKK, PEI and engineering polymers. The HTX is no longer in production. Installed machines remain fully supported: replacement parts and build plates are in the store, and the printer and material profiles are bundled with PrintSlice Pro.
Machine
Built for high-temperature polymers.
220 °C magnetic build plate
Cast tooling-plate bed with high-Curie-temperature magnets and removable carbon-fiber build sheets.
100 °C actively heated chamber
Insulated, actively heated build chamber for PEEK, PEKK, PEI and engineering polymers.
TBI linear rails & ball screws
High-temperature linear rails and dual ball screws for repeatable motion and Z accuracy.
High-temperature bed probe
A bed probe developed at 3D Labs, rated to 204 °C.
7" touch screen & web interface
Full control at the machine with no network required, plus a browser interface for queueing and monitoring.
HEPA carbon filter
Filtered chamber exhaust, controlled from PrintSlice as its own fan channel.
Ethernet & USB
Network connectivity and USB for air-gapped workflows.

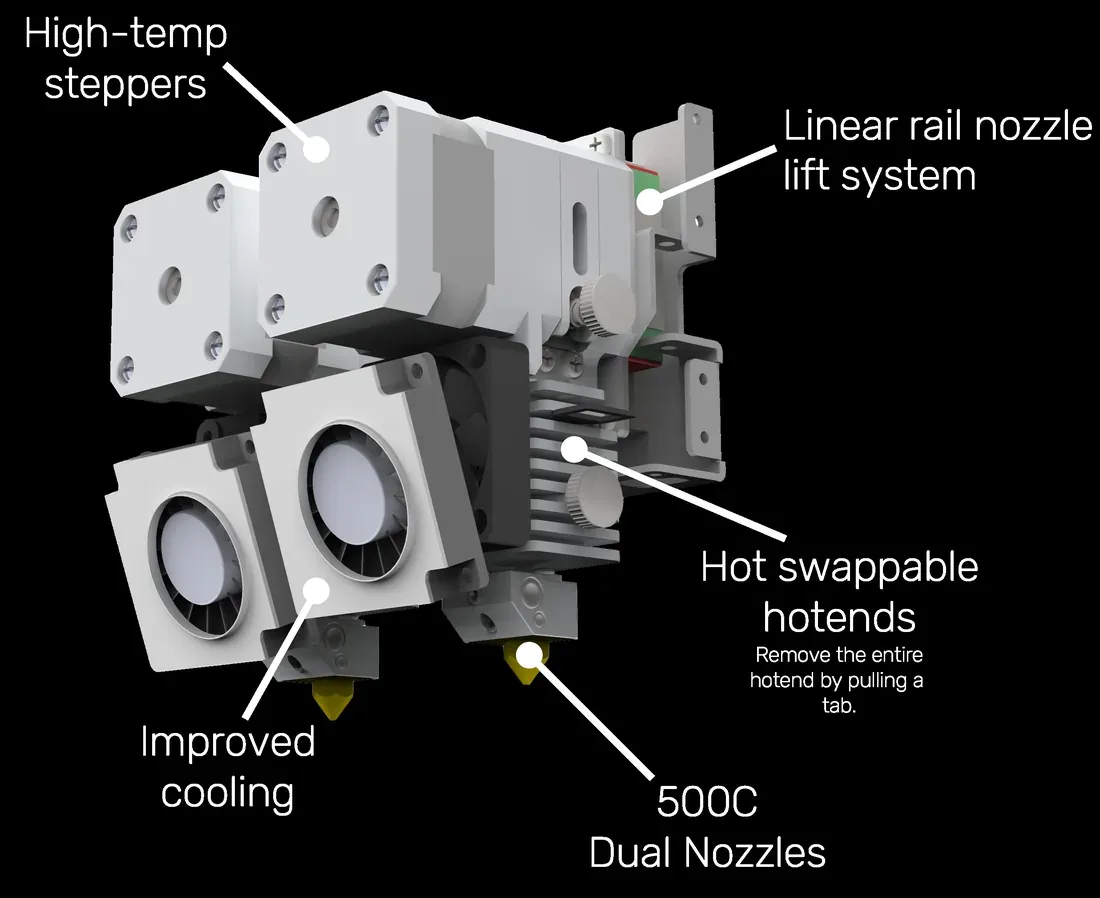

Extruder
Dual 500 °C nozzles, hot-swappable.
Lifting nozzles for dual-material prints, high-temperature stepper motors and fully hot-swappable hotends. A clog or a change to a lower-temperature material is a swap, not a rebuild.

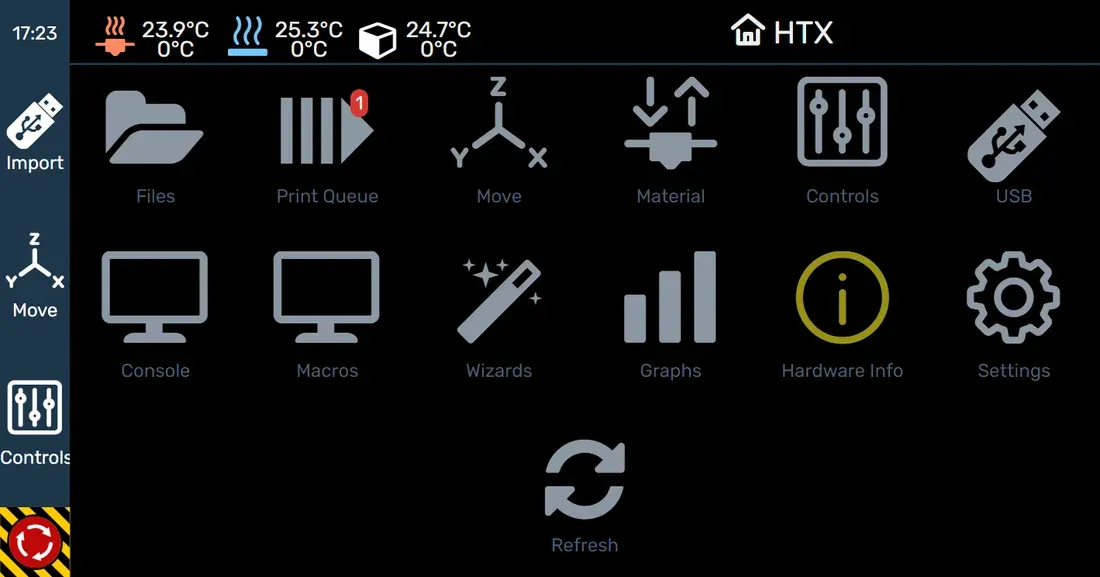

Control
Touch screen at the machine, browser interface on the network.
Full control at the printer with no network required, plus a web interface for queueing and monitoring. Ethernet and USB for connected and air-gapped workflows.
PrintSlice Pro
Supported out of the box.
The HTX printer profile ships with PrintSlice Pro with the heated chamber, part-cooling fan and HEPA filter channels configured. HTX material profiles are bundled for:
- PEEK
- PEEK-CF
- PEKK
- PEKK-CF
- PEI
- PSU
- PA-CF
- ABS / ASA
- PP
- TPU
- PLA
| Nozzles | Dual, 500 °C, hot-swappable hotends |
|---|---|
| Build plate | 220 °C magnetic cast tooling plate, removable build sheets |
| Chamber | 100 °C actively heated, insulated |
| Build volume | 350 × 300 × 300 mm |
| Motion | TBI linear rails, dual ball screws |
| Bed probe | High-temperature probe rated to 204 °C |
| Filtration | HEPA carbon filter on the chamber exhaust |
| Interfaces | 7" touch screen, web interface, Ethernet, USB |
| Electronics | 3D Labs HTX Mainboard v1 |
| Origin | Developed and assembled in the USA |
HTX owners
Support continues for every installed HTX.
File a ticket, browse the support portal, or order parts and build plates from the store.
